Description

Product Description

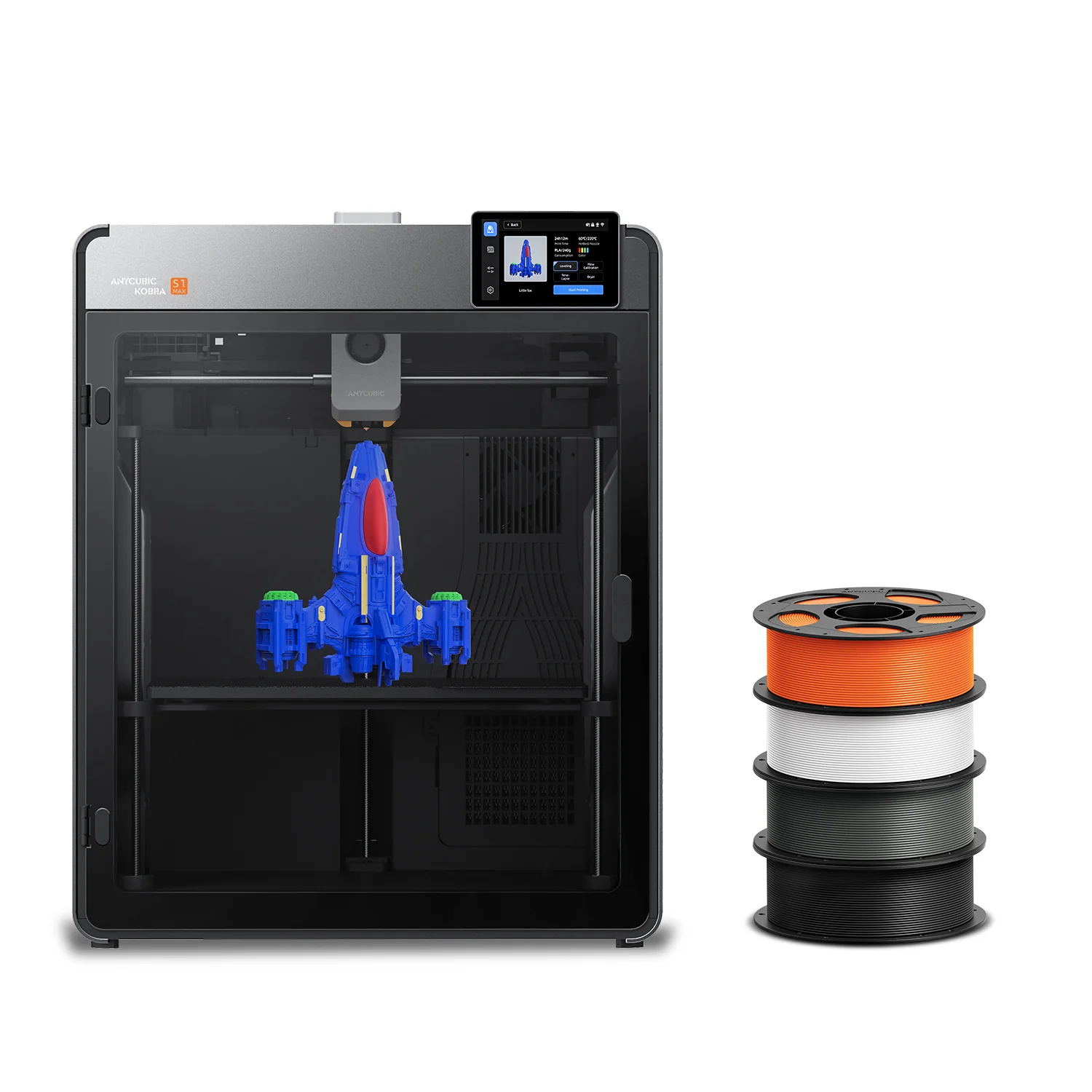

The Anycubic Kobra S1 Max is a powerful and versatile CoreXY 3D printer designed to handle large and demanding prints with accuracy and reliability. Its spacious 350 × 350 × 350 mm build volume allows you to produce oversized models, functional prototypes, tooling, and full-scale parts without splitting designs.

Built with a fully-enclosed frame and active chamber heating (up to 65 °C), the S1 Max maintains a stable thermal environment for printing engineering-grade filaments with reduced warping and improved layer adhesion.

The printer features a 350 °C high-temperature hotend with a hardened steel nozzle, capable of reliably extruding a wide range of materials — from standard PLA and PETG to advanced engineering polymers like ABS, ASA, PC, PA (Nylon), and carbon-fiber composites.

Smart automation includes LeviQ3.0 auto bed leveling, pressure advance/flow calibration, filament runout & entanglement detection, power-loss resume, and AI-based real-time print monitoring via a built-in 720p HD camera.

With support for multiple connectivity options (USB, Anycubic App, slicing software), intuitive 4.3″ touchscreen control, and broad filament compatibility, the Kobra S1 Max is ideal for makers, designers, and small studios who demand large build capacity and robust material handling.

---

📊 Full Specifications

🖨️ Printing Performance

• Print Technology: FDM (Fused Deposition Modeling)

• Build Volume: 350 × 350 × 350 mm³ (Large Format)

• Recommended Print Speed: ~300 mm/s

• Maximum Print Speed: 600 mm/s

• Acceleration: Up to 20,000 mm/s²

---

🔥 Hotend & Build Plate

• Hotend Max Temperature: 350 °C

• Nozzle Diameter: Standard 0.4 mm (optional 0.25 mm / 0.6 mm / 0.8 mm)

• Nozzle Material: Hardened Steel

• Build Plate: PEI Spring Steel

• Heated Bed Max Temp: 120 °C

---

🧠 Smart Features & Automation

• Auto Bed Leveling: LeviQ3.0 Auto-Leveling

• Pressure Advance / Flow Calibration: Supported

• Filament Runout Detection: Supported

• Filament Entanglement Detection: Supported

• Power-Loss Resume: Supported

• AI Spaghetti / Print Monitoring: Supported (with built-in HD camera)

• Object-Skip & Area Leveling: Supported

---

🌐 Connectivity & Interface

• Display: 4.3″ Capacitive Touchscreen

• Monitoring: Built-in 720p HD Camera

• Control & Connectivity: USB, Anycubic APP, Slicing Software support

• Firmware: Kobra OS

---

🧪 Supported Filaments

• Standard & Advanced Materials: PLA, PETG, TPU (95A), PET, PLA-CF, PETG-CF, PVA, ABS, ASA, PC, PA (Nylon), PA6-CF, PC-CF/GF, PET-CF

---

📦 Mechanical & Physical

• Construction: Fully-Enclosed CoreXY Structure

• Extrusion Type: Short Distance Extrusion with Hardened Steel Gears

• Noise Level: ~55 dB (with chamber heating)

• Machine Dimensions: ~502.7 × 483 × 584 mm

• Machine Weight: ~25.7 kg
