Description

Product Description

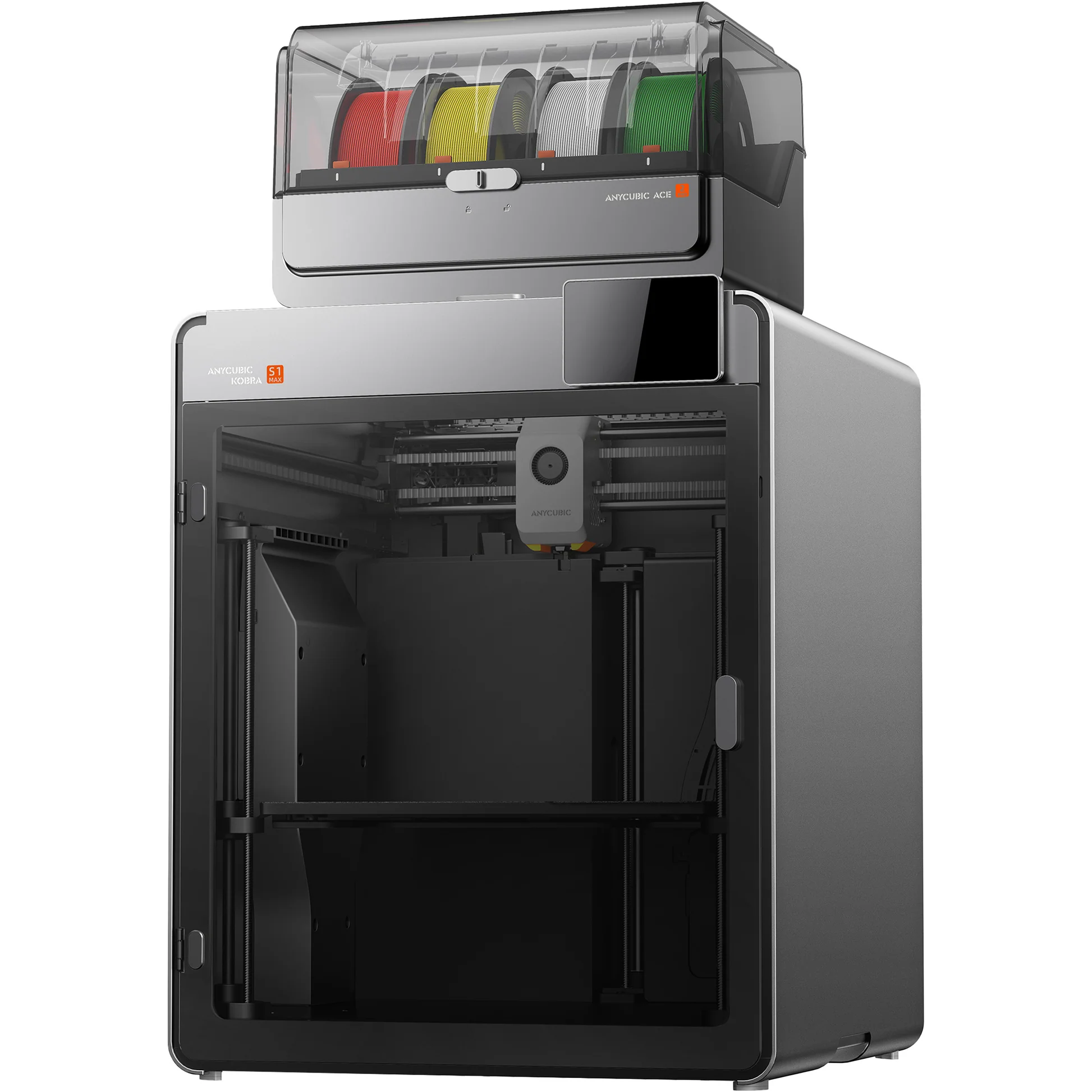

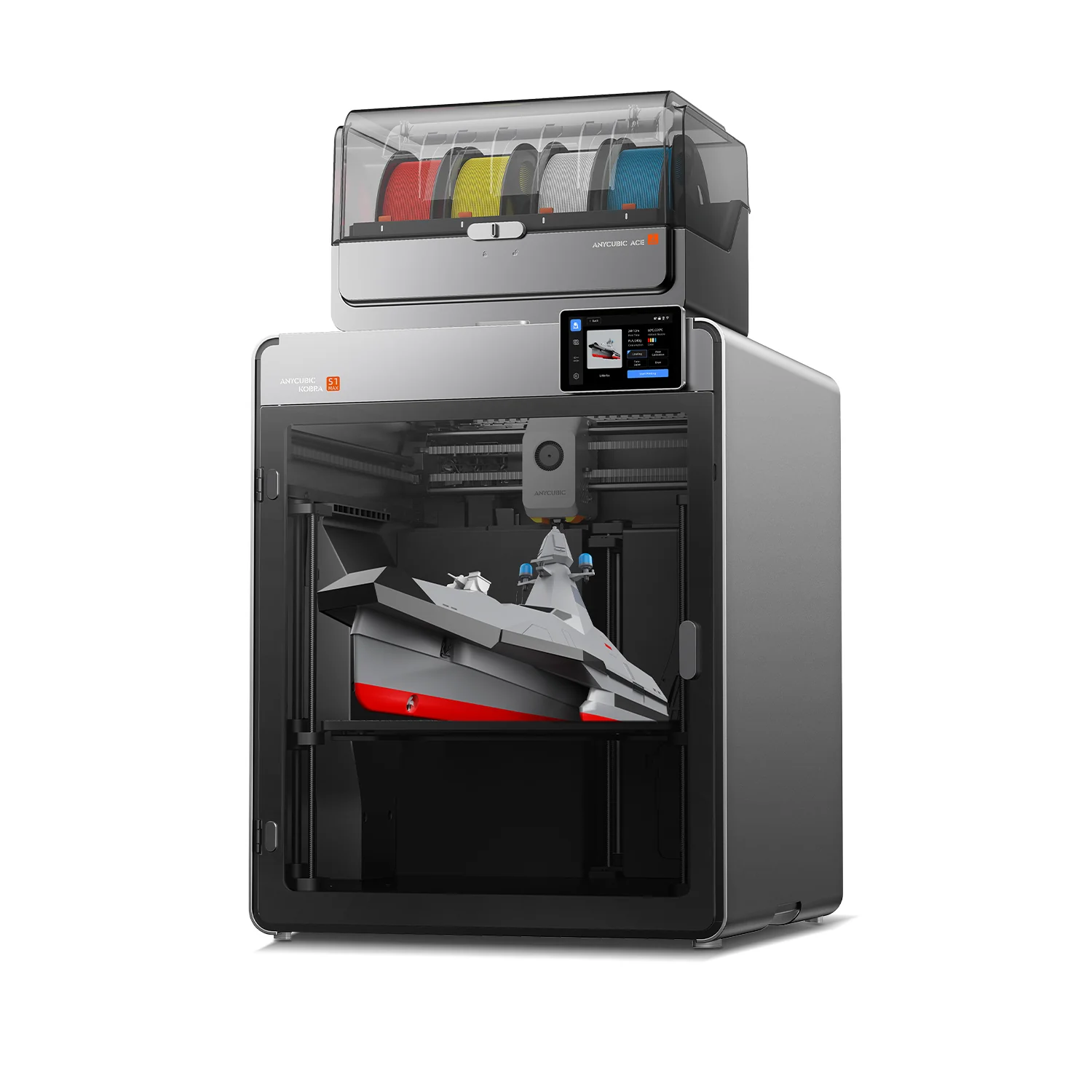

The Anycubic Kobra S1 Max Combo is a next‑generation 3D printer designed for ambitious projects and professional workflows. With an extra‑large 350 × 350 × 350 mm build volume, even large models like helmets, footwear, architectural prototypes, and composite prints are easy to produce without segmentation.

Built on a fully enclosed CoreXY chassis with 65 °C active chamber heating, this machine maintains a stable thermal environment that improves adhesion and reduces warping for engineering‑grade filaments. The high‑temperature 350 °C hotend with hardened steel nozzle and 120 °C heated bed give you the flexibility to print a wide range of materials from PLA and PETG to ABS, ASA, PC, Nylon, and carbon‑fiber composites.

Included in the combo is the ACE 2 Pro multicolor module, beginning with 4‑color printing and expandable up to 16‑color output by adding additional modules — ideal for vibrant, multicolor projects. Filament drying and moisture level display features help maintain print quality even with moisture‑sensitive materials.

Smart features like LeviQ3.0 auto bed leveling, filament run‑out and entanglement detection, power‑loss resume, and AI spaghetti/print error detection minimize failures and provide a smoother printing experience. The 4.3″ capacitive touchscreen makes operation intuitive, and the built‑in 720p HD camera ensures real‑time monitoring and timelapse capture via USB or the Anycubic App.

Whether you’re printing colorful prototypes, industrial parts, or creative artistic pieces, the S1 Max Combo delivers robust performance, vast material support, and a massive build chamber with advanced automation and multicolor freedom.

📊 Full Specifications

🖨️ Core Printing

• Print Technology: FDM (Fused Deposition Modeling)

• Build Volume: 350 × 350 × 350 mm

• Multicolor Printing: Up to 16 colors with ACE 2 Pro modules (starts with 4 colors)

• Print Speed: Recommended 300 mm/s, Maximum 600 mm/s

• Acceleration: Recommended 10,000 mm/s²; Maximum 20,000 mm/s²

• Layer Thickness: ~0.05 – 0.3 mm (varies by settings)

🔥 Hotend & Build Plate

• Max Nozzle Temperature: 350 °C

• Nozzle Diameter: Standard 0.4 mm (optional 0.25 / 0.6 / 0.8 mm)

• Nozzle Material: Hardened Steel

• Build Plate: PEI Spring Steel Build Plate

• Max Heated Bed Temp: 120 °C

• Chamber Heating: 65 °C active heated chamber

🧠 Smart & Automation Features

• LeviQ3.0 Auto Bed Leveling

• Filament Run‑Out Detection & Auto Resume

• Filament Entanglement Detection

• AI Spaghetti / Print Error Detection

• Power‑Loss Resume

• Pressure Advance / Flow Calibration

• Object‑Skip & Area Leveling

🌐 Connectivity & Interface

• Display: 4.3″ Capacitive Touchscreen

• Video Monitoring: 720p HD Camera

• Connectivity: USB, Anycubic App (remote monitoring)

• Firmware: Kobra OS

• Multilingual UI: EN / CN / DE / FR / IT / ES / RU / JP / KO / PT

🧪 Material Compatibility

• Supported Materials:

  • PLA, PETG, TPU (95A) (TPU not compatible with ACE 2 Pro module)

  • Engineering‑grade: ABS, ASA, PC, PA, PA6‑CF, PC‑CF/GF, PET‑CF, PET, PVA

📦 Physical & Package

• Machine Dimensions (Printer): 502.7 × 483 × 584 mm

• Machine Weight: Printer ~25.7 kg; ACE 2 Pro ~3.7 kg

• Combo Package Weight: ~35 kg

• Noise Level: ≤48 dB (Standard); ≤45 dB (Quiet mode)
